• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 281497

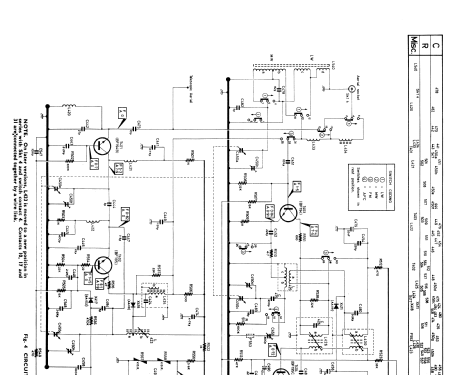

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF194 BF194 BF195 BF195 BF195 BC149 AC128 AC187 AC188 AA119 AA119 AA119 AA119 AA119 BA114 BA102

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 6 x 1,5 / ? Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.75 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio Receiver Portable Radio 13RL486 - Philips Electrical, Lamps,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 14 x 8 x 3 inch / 356 x 203 x 76 mm

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.

• Other Models

• Here you find 426 models, 302 with images and 285 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Electrical, Lamps, Industrial - Miniwatt; London
