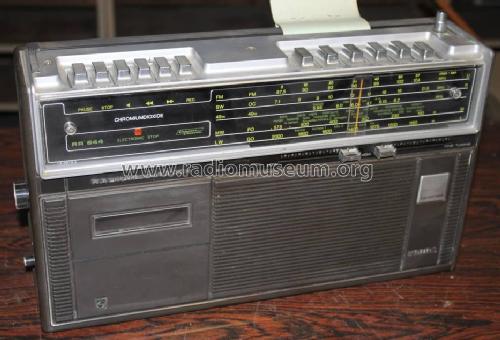

Radio-Recorder 22RR644 /00

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1977
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 247737

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 21
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 127; 220; 240 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio-Recorder 22RR644 /00 - Philips; Eindhoven tubes
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 365 x 210 x 90 mm / 14.4 x 8.3 x 3.5 inch
  • Notes

  • Wave range:
    LW: 148,5 - 262,5 kHz.
    MW:   517 - 1622 kHz.
    SW:  5.91 - 6,24 MHz.
    SW: 7,03 - 21,97 MHz.
    FM:  87,5 - 104 MHz.
    One semiconductor per type listed.





  • Net weight (2.2 lb = 1 kg)
  • 3.3 kg / 7 lb 4.3 oz (7.269 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
