• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 211837

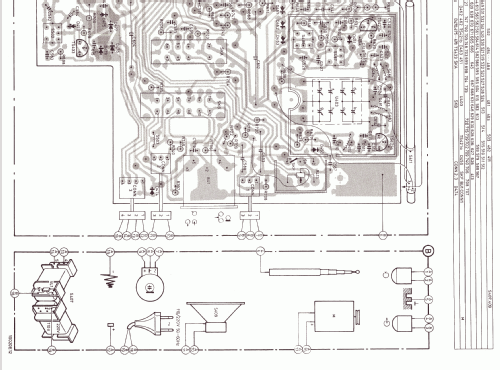

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors
• BF494 BF495 BC548 BC549 BC558 BC338 BC328 BD136

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 127; 220 / 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio-Recorder SX8170 /00 /13 /14 /15 /16 /19 /30 /31 /33 /38 /50 /55 /59 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 294 x 180 x 74 mm / 11.6 x 7.1 x 2.9 inch

• Notes

• This model page relates to the generic Philips model SX8170 with its various versions, the differences a.o. being the IF frequency.

  Wave range:
  MW: 520 - 1605 kHz.
  FM: 87,5 - 104 MHz.
  One semiconductor per type listed.

  Versions:
  /00 and /50: 452 kHz
  /15 and /55: 470 kHz
  /19 and /59: 460 kHz.

  See also model Radiorecorder 170 22AR170 /19 /59, 22AR170 /15 /55 and 22AR170 /00 /50.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.

• Other Models

• Here you find 5270 models, 4414 with images and 3455 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
