Radio-Recorder SX8694 /00
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1982 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 212435
Vom Hersteller

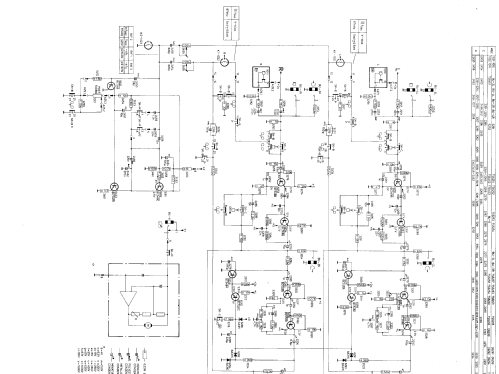

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 32
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 110; 127; 220; 240 / 6 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radio-Recorder SX8694 /00 - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Wave range:
LW: 150 - 260 kHz.
MW: 520 - 1605 kHz.
SW: 5,95 - 15,45 MHz.
FM: 87,5 - 108 MHz.
Output power: 2x 2 Watt at 8 ohm.
One semiconductor per type listed.

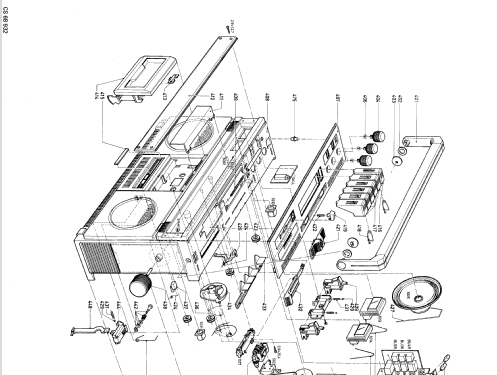

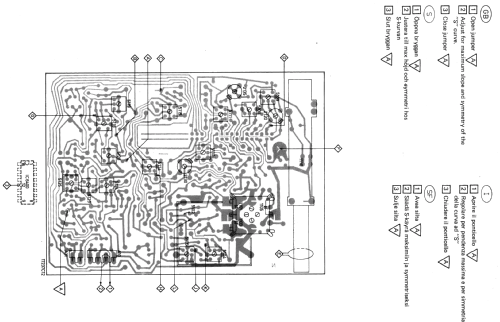

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
