Radio Recorder TR2821 /15 /22 /45 /52

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1981

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 233417

• Picture

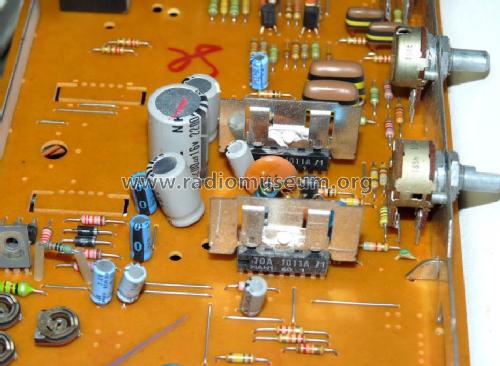

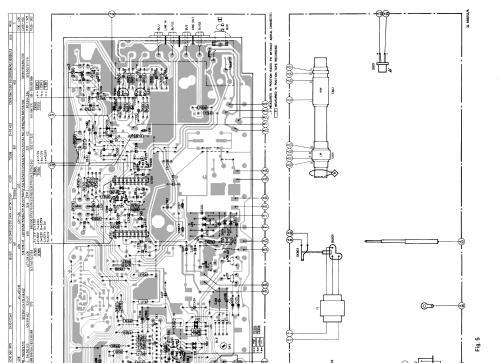

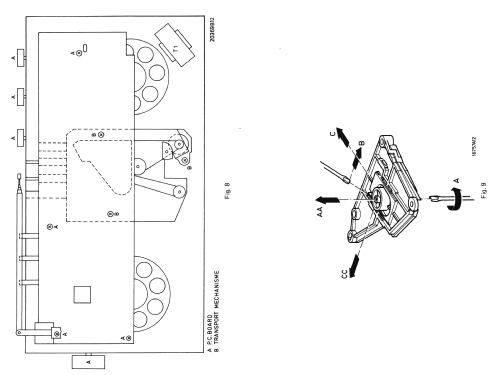

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors

• Main principle
• ZF/IF 468/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

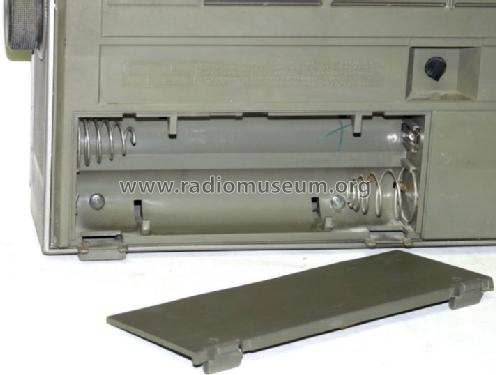

• Power type and voltage
• Line / Batteries (any type) / 110-127; 220-240 / 6x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio Recorder TR2821 /15 /22 /45 /52 - Philips; Eindhoven tubes

• Dimensions (WHD)
• 440 x 230 x 100 mm / 17.3 x 9.1 x 3.9 inch

• Notes

• Similar to Philips D8212

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• Mentioned in

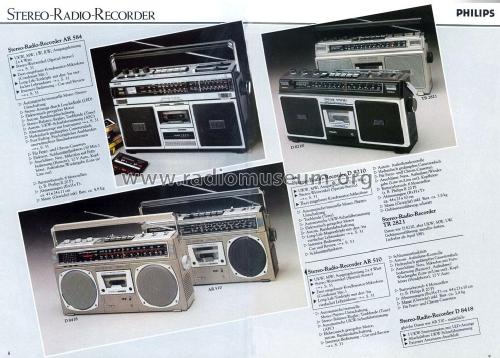

• Philips - Radio TV and Home Entertainment Catalogs (Philips Katalog 1981)

• Literature/Schematics (1)

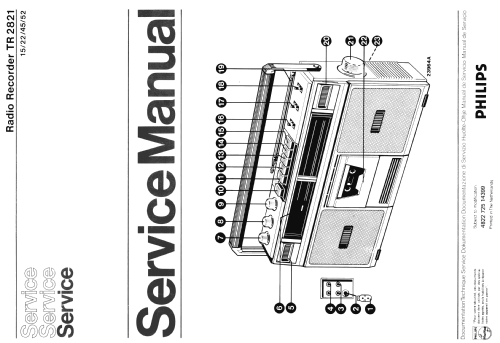

• -- Original-techn. papers.

• Author
• Model page created by Manfred Rauschen. See "Data change" for further contributors.
