• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1974 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 240593

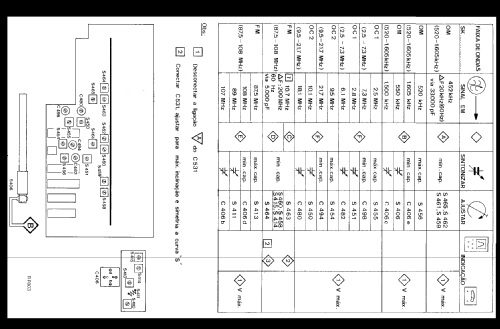

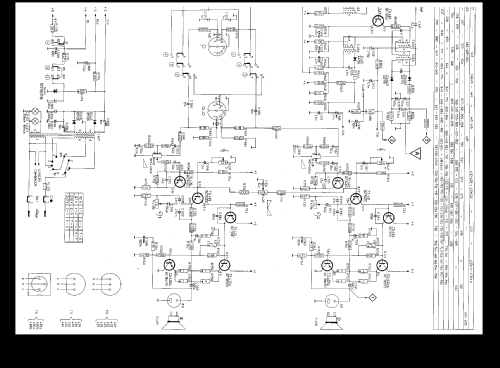

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Power out
• 6 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiofone 06RF545 / 00 / 01 - Philips do Brasil S.A.

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1080 x 700 x 372 mm / 42.5 x 27.6 x 14.6 inch

• Notes

• Two channels stereo.

  Two versions of record changer: 06GC047 (with PU cartridge GP200) or 06GC057 (with PU cartridge GP215)





• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.

• Other Models

• Here you find 163 models, 123 with images and 148 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips do Brasil S.A.
