• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1965 ??

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 338300

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF93 EF184 EM80 EAA91 ECC83 ECC83 EL84 EL84 EZ81

• Number of Transistors

• Semiconductors
• OA81

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 90; 110; 125; 180; 200; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 12 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

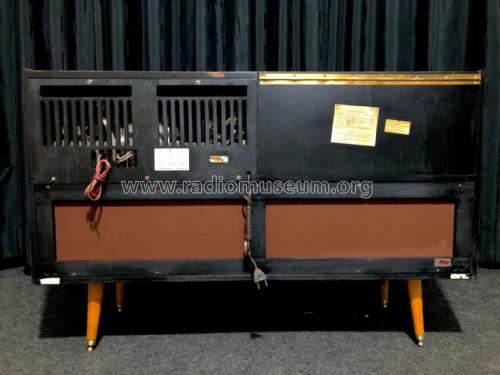

• Model: Radiophone FR-680A - Philips do Brasil S.A.

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1100 x 360 x 715 mm / 43.3 x 14.2 x 28.1 inch

• Notes

• Stereophonic radiophone for AM and FM reception, equipped with a connector to adapt a FM MPX stereo decoder. Equipped with record changer AG1026 and pickup AG3228. Stereophonic amplifier with 2 x 6 W max. output power.

  Wave Bands:

  MW 517 - 1622 kHz
  TW 1,65 - 5,1 MHz
  SW 5,5 - 10,2 MHz
  SW 11,5 - 17,2 MHz
  SW 17,5 - 26,5 MHz
  FM 87 - 108,5 MHz

  This documentation was produced by ESBREL (Esquemateca Brasileira de Eletrônica)

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Marcelo Carrano. See "Data change" for further contributors.
