• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 188481

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH35 EBF35 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 220-240; 250-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

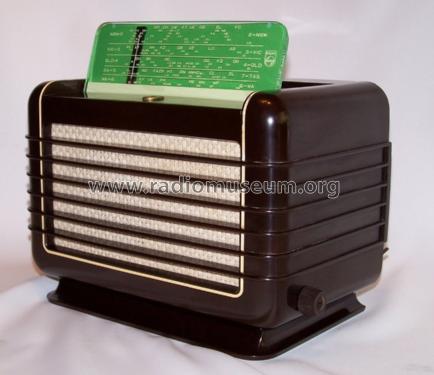

• Model: Radioplayer 112A - Philips Australia

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

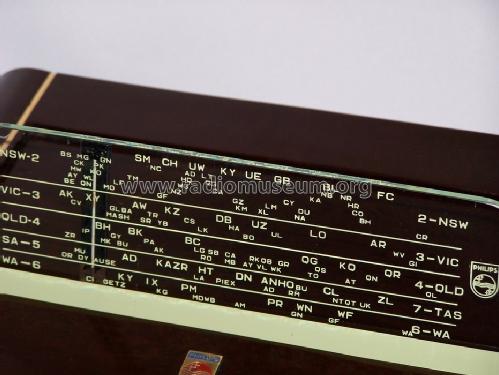

• This model differs from the model 112 in the types of tuning capacitor, padder capacitor and dial glass used. See also Mullurd version, Model MAS1000A.

  This model was available in one of five colours: walnut, mahogany, green, blue or ivory.

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. VII

• Literature/Schematics (1)
• Australian Official Radio Service Manual AORSM (Volume 8, 1950, Page 295.)

Radioplayer 112_112A service manual

998 KB

• Documents regarding this model

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
