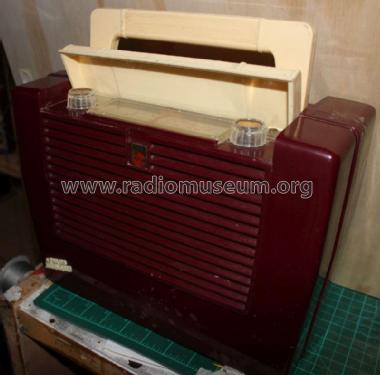

Radioplayer Troubadour 144A
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 311462
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 200-250/7.5-90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radioplayer Troubadour 144A - Philips Australia
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 220 x 130 mm / 11.8 x 8.7 x 5.1 inch
- Notes
-
The Troubadour 144A is electrically indentical to Model 144. The only difference is that it uses a single combination 7½ & 9/90 volt type 753 Eveready battery. The earlier 144 uses two batteries, Eveready types, 7½V Eveready 719 and 90V Eveready Mini-Max 490P.
Colours available in Dark Blue, Light Blue, Burgundy, Green, Grey, Ivory, Red & Yellow.
See also Mullard version, Model Voyager MABS1053A.
- Net weight (2.2 lb = 1 kg)
- 3.450 kg / 7 lb 9.6 oz (7.599 lb)
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Radioplayer Service Data. (For Model 144))
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 13, 1955, Page 263. (For Model 144))
- Author
- Model page created by Mal Fields. See "Data change" for further contributors.
