Raffael-Automatic 19TD330A

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1961–1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 101595

• • Brand: Deutsche Philips-Ges.

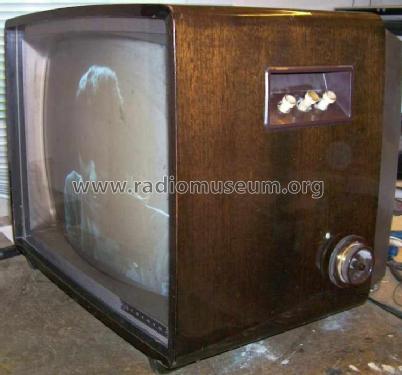

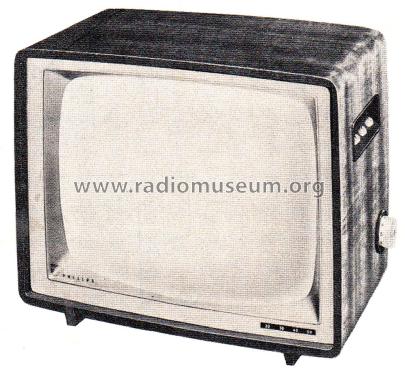

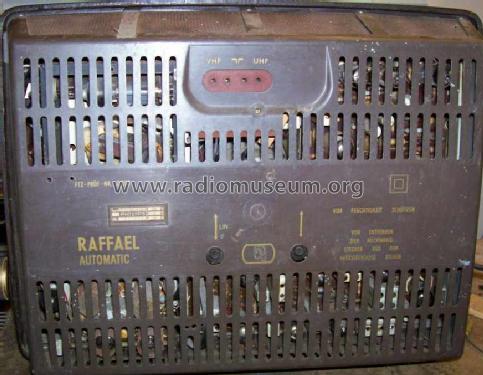

• Picture

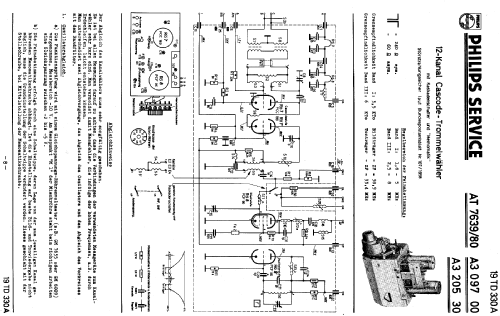

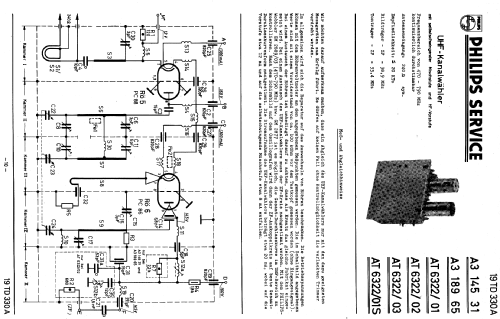

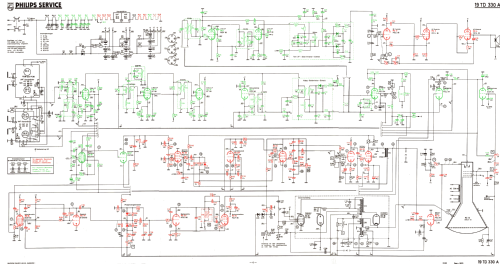

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCC189 PCF86 PC88 PC86 EF183 EF184 EF184 PCL84 ECH83 PF86 PCL85 PCF80 PL500 PY88 DY86 or DY87 PCF80 PCF80 PCL86 PCL85 ECH83 PCF80 AW47-91

• Number of Transistors

• Semiconductors
• BA100 BA100 BA100 OA70 OA81 OA81 OA81 OA81 OA81 OA210

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Raffael-Automatic 19TD330A - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 390 x 370 mm / 18.9 x 15.4 x 14.6 inch

• Notes
• VHF/UHF.

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 978.00

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Mentioned in

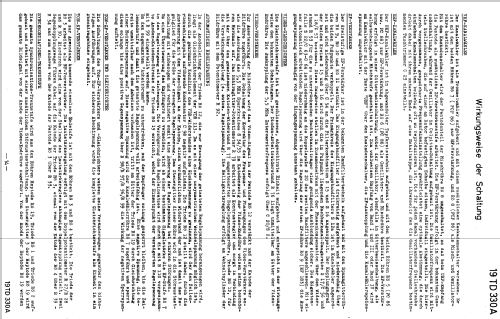

• -- Original-techn. papers. (Service-Manual 2.62)

• Literature/Schematics (1)
• - - Manufacturers Literature (Sammelpreisliste, Fernsehgeräte 1961/62)

• Author
• Model page created by René Goebel † 21.12.23. See "Data change" for further contributors.
