• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 246641

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 ECH81 PL82 ECC82 PL81 PY81 PCF80 PCF80 PCF80 PL82 PY82 PY82 DY87 MW43-69

• Number of Transistors

• Semiconductors
• OA70 OA81 OA81 OA81 OA81 OA81

• Main principle
• Superhet with RF-stage; ZF/IF 38900/33400/5500 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

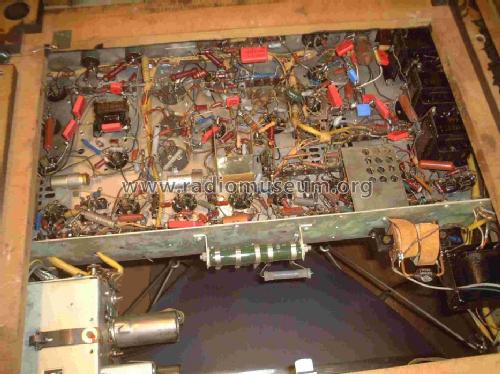

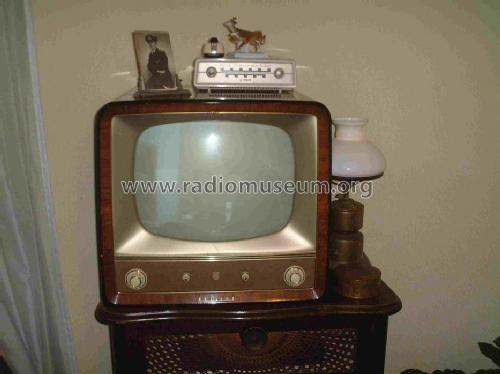

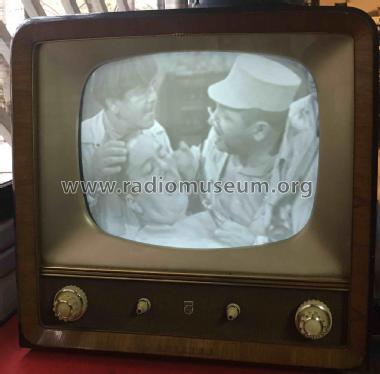

• Model: Raffael 17TD140A /00 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 480 x 460 mm / 20.5 x 18.9 x 18.1 inch

• Notes

• Nur VHF.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
