Raffael Sport 19TX534A /22 Ch=F2N
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1966/1967
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 274587
-
- Brand: Deutsche Philips-Ges.

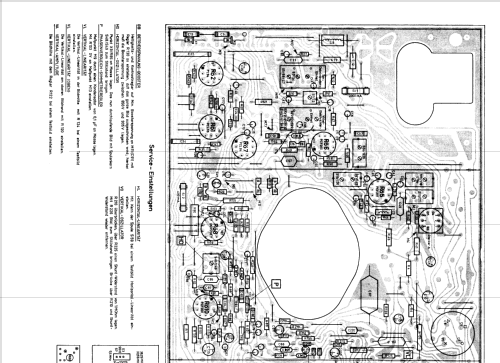

Picture from Philips manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- PC900 PCF801 PCF201 PCF200 PCL84 PCH200 PCL85 PCF802 PL500 PY81 DY87 PCL86 PL84 A47-11W
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Raffael Sport 19TX534A /22 Ch=F2N - Philips Radios - Deutschland
- Shape
- Tablemodel, low profile (big size).
- Notes
-
VHF Kanalwähler 3112 108 50040 - HA 361 59
UHF Kanalwähler 3122 108 59480 - HA 362 58
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
