• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1976/1977

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 103972

• • Brand: Deutsche Philips-Ges.

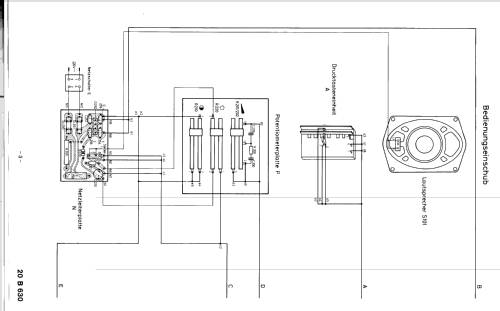

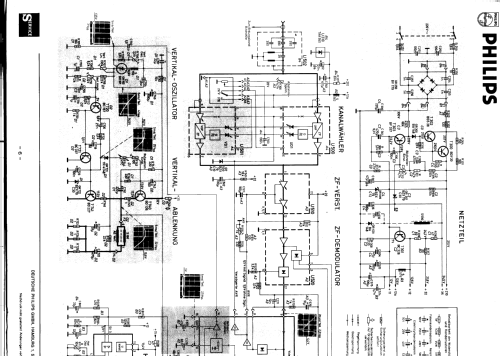

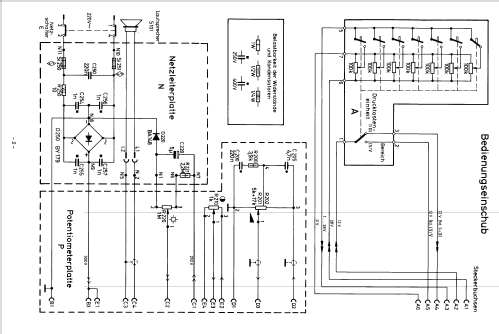

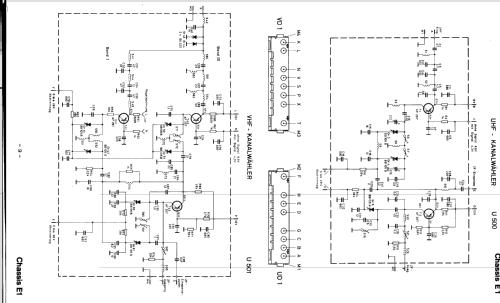

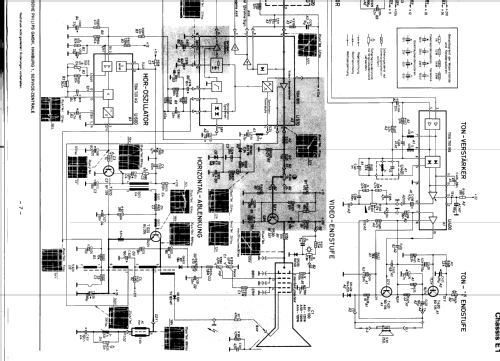

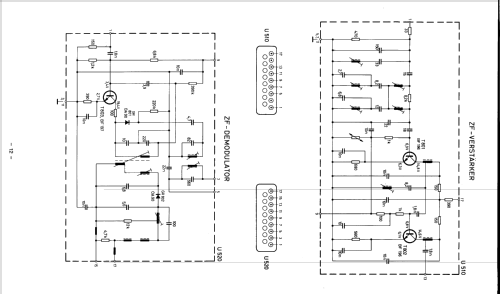

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A50-120W

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

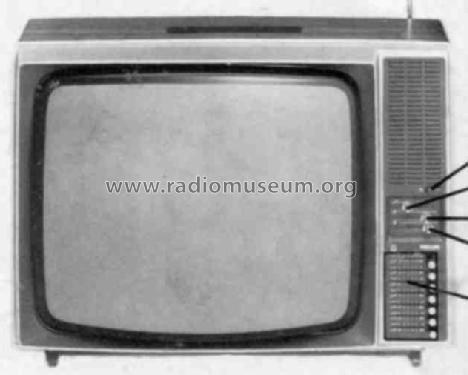

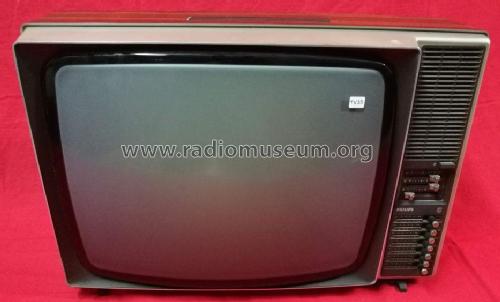

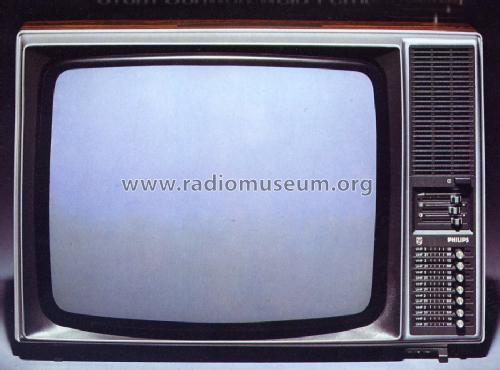

• Model: Raffael Sport 20B630 Ch= E1 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 410 x 340 mm / 22.8 x 16.1 x 13.4 inch

• Notes
• 26 Dioden, 4 ICs. VHF-Bereiche I und III, UHF-Bereiche IV und V. Gerät mit Chassis E1 bestückt.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Mentioned in

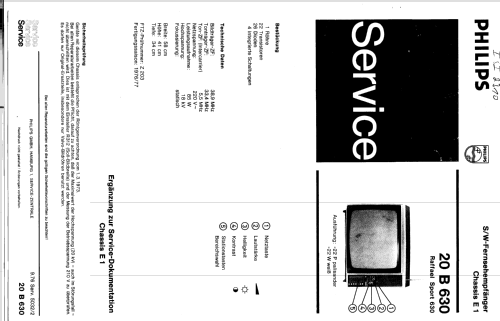

• -- Original-techn. papers.

• Author
• Model page created by Franz Born †. See "Data change" for further contributors.
