• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1956/1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 20888

• • Brand: Deutsche Philips-Ges.

• Number of Tubes
• 21

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 ECH81 PL82 ECC82 PL81 PY81 DY86 PCF80 PCF80 PCF80 PL82 PY82 PY82 MW43-64

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

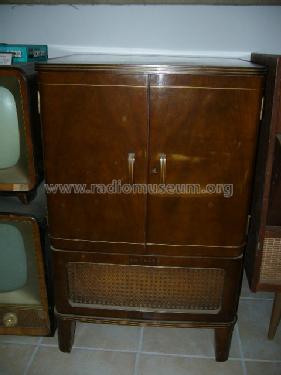

• Model: Raffael-Truhe - Philips Radios - Deutschland

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 570 x 900 x 480 mm / 22.4 x 35.4 x 18.9 inch

• Notes
• VHF-Band I & III.

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Price in first year of sale
• 1,128.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57

• Other Models

• Here you find 2543 models, 2255 with images and 1564 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
