• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1965

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 118754

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECC83 EM87

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: RCL-Bridge PM6300 - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 234 x 173 x 187 mm / 9.2 x 6.8 x 7.4 inch

• Notes

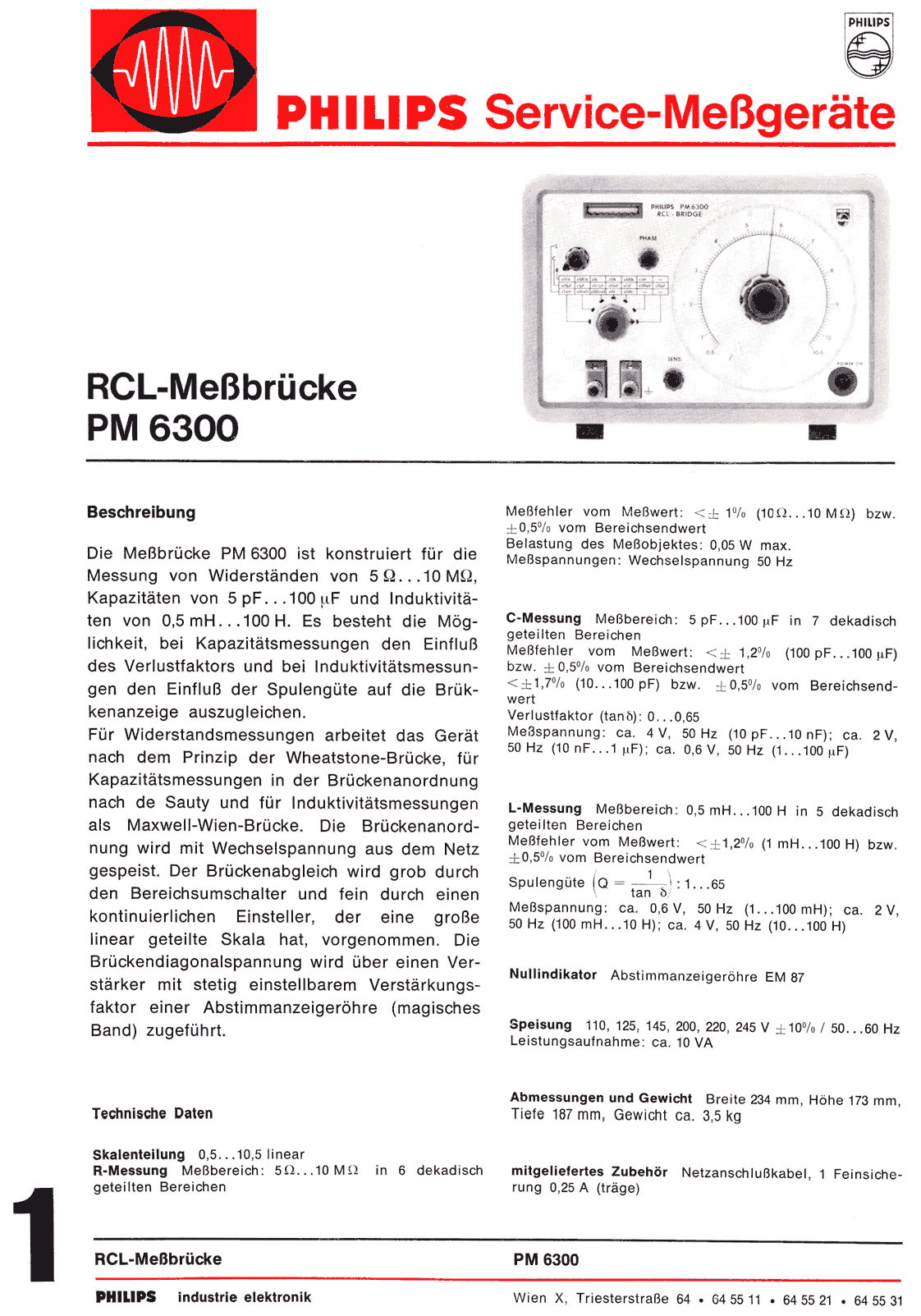

• Messbereiche der Philips RCL-Bridge PM6300:
  Widerstand 5 Ohm-10 MOhm in 6 Bereichen,
  Kapazität 5 pF-100 µF in 7 Bereichen,
  Induktivität 0,5 mH-100 H in 5 Bereichen.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Price in first year of sale
• 782.00 DM

• Mentioned in
• Funkschau (Heft 23/1965 Seite 2119)

• Literature/Schematics (1)
• Funk-Technik (FT) (11/1965, S. 431 / Messebericht Hannover, Neue Service-Messgeräte)

• Literature/Schematics (2)
• - - Manufacturers Literature (Philips Katalog 1966)

• Author
• Model page created by Gerhard Härtl. See "Data change" for further contributors.
