Record Player 13GF816 (GF816)

Philips Electrical, Lamps, Industrial - Miniwatt; London

Data
Forum
Pictures
Collections

  • Year
  • 1969
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 303992

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Record Player 13GF816 - Philips Electrical, Lamps,
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 15.25 x 7.75 x 17 inch / 387 x 197 x 432 mm
  • Notes

  • A mains powered transistorised mono record player housed in a teak veneered and leathercloth covered wooden cabinet with a Philips GC150 4 speed autochanger fitted with a AG3306, GP306 or GP300 cartridge suitable for mono and stereo records. Separate bass and treble tone controls. Loudspeaker 8 x 5 inch. Output sockets for tape recorder and external loudspeaker. Input sockets for radio/tape recorder.

    The last four transistors are in a Mullard LP1162/1 amplifier module.

    Similar to the Stella ST8006 record player.

  • Net weight (2.2 lb = 1 kg)
  • 18 lb 0 oz (18 lb) / 8.172 kg
  • Literature/Schematics (1)

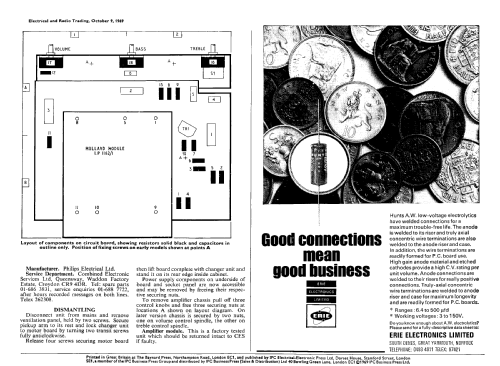

  • ERT Service Chart 1716 dated October 9 1969
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
