• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1980 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 296365

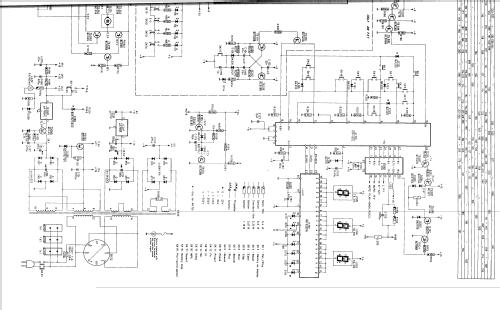

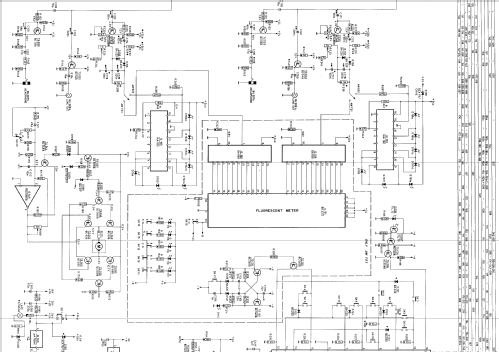

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 44

• Semiconductors
• BC549 BC338 BC548 BC635 BC327 BC558 BC636 TIL78 BC547 BC327 BD435 NE645B µA79xx TDA1059 MC7824 L203B COP420 MM5450 IAA180 BA658 TIL32 BZX79 BA220 BAX18 BA317 1N4002 Diode_LED TIL312

• Main principle
• Hi-Fi-High End products

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Recorder 06AW622 - Philips do Brasil S.A.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 110 x 300 mm / 16.5 x 4.3 x 11.8 inch

• Notes

• By mid 80´s modular hifi - also called "separates" - were a hit in Brazlian market, in spite of they high price. In an attempt to make this concept more accessible, thereby increasing its market share, Philips' commercial department briefed the local audio lab (at the time in Piracicaba city) to develop some families of modular sets with low cost and basic specifications. These families were composed by the following models:

  06AH621 and 06AH625 = Receivers
  06AH325 = Stereo amplifier
  06AH125 = Tuner
  06AW620, 06AW622 and 06AW721 = Cassette record/players
  06AF294 = Turntable
  Dedicated speaker boxes for each family and a wood rack

  06AW622 STAND ALONE CASSETTE TAPE DECK

  Main differences between tape decks 06AW620, 06AW622 and 06AW721

  	06AW620	06AW622	06AW721
  Tape counter	Mechanic	Led display	Led display
  Tape type	Fe - CrO2	Fe - CrO2 - Me	Fe - CrO2 - Me
  Dolby NR	No	Yes	Yes
  MPX filter	No	No	Yes
  VU	Led	Led	Fluorescent display

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.
