• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1957 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 337864

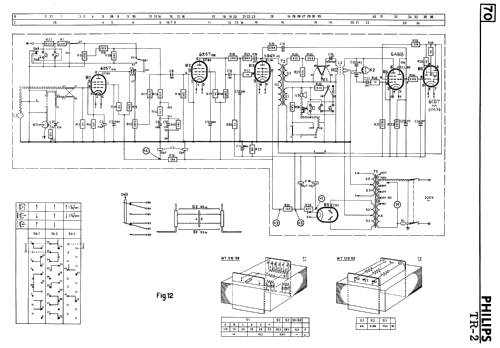

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6267 or EF86 6267 or EF86 6BQ5 or EL84 6AB8 or ECL80 6CD7 or EM34 6V4 or EZ80

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: Reel to Reel Tape Recorder TR-2 - Philips Canada

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Philips model TR-2 is a 6-tube reel to reel tape recorder unit. Runs at 3-3/4 and 1-7/8 in/sec tape speed.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1957-1958 Supplement 42)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
