• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1955 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 123301

• • Brand: Deutsche Philips-Ges.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Horn / Ø 42.5 cm = 16.7 inch

• Material
• Metal case

• from Radiomuseum.org

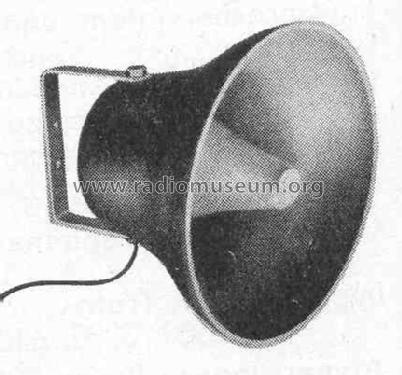

• Model: Reflex-Trichterlautsprecher VE1639 - Philips Radios - Deutschland

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 425 x 425 x 310 mm / 16.7 x 16.7 x 12.2 inch

• Notes
• Reflex-Trichterlautsprecher. Hochleistungs-Druckkammersystem mit Anpassungsübertrager; Übertragerimpedanz 500/830/1600 Ohm; Impedanz der Schwingspule: 15 Ohm, magnetische Feldstärke: 15000 Gauß; Belastbarkeit: 20 W.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 475.00 DM

• Mentioned in
• Philips Taschenbuch,Sept. 1955

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
