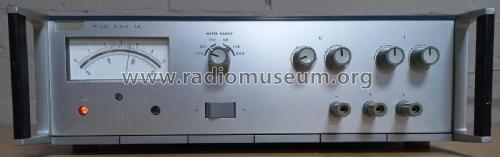

Regulated D.C. Power Supply PE1520 /00

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1970 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 348256

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Wave bands
• - without

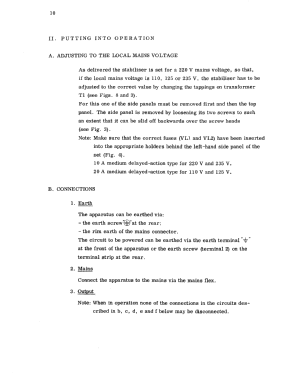

• Power type and voltage
• Alternating Current supply (AC) / 50-60 Hz, 110; 125; 220; 235 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Regulated D.C. Power Supply PE1520 /00 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

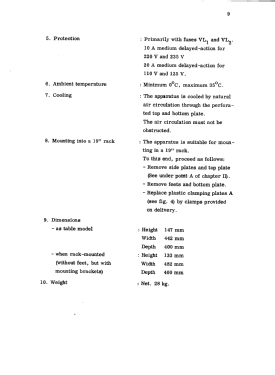

• Dimensions (WHD)
• 442 x 147 x 400 mm / 17.4 x 5.8 x 15.7 inch

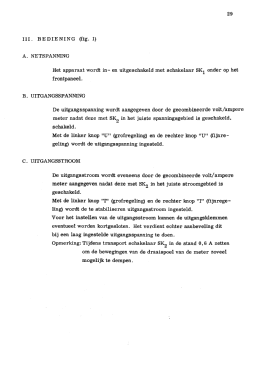

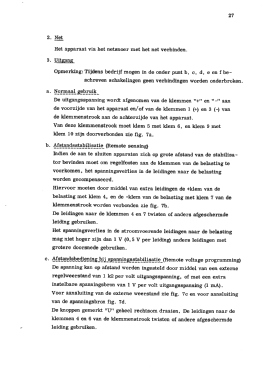

• Notes

• Regulated D.C. Power Supply Philips PE1520 /00, output adjustable 0-75 V / 6 A.

  Meter ranges:

  • 0-7.5 V
  • 0-15 V
  • 0-75 V
  • 0-0.6 A
  • 0-1.5 A
  • 0-6 A.

• Net weight (2.2 lb = 1 kg)
• 28 kg / 61 lb 10.8 oz (61.674 lb)
