• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79945

• • Brand: Deutsche Philips-Ges.

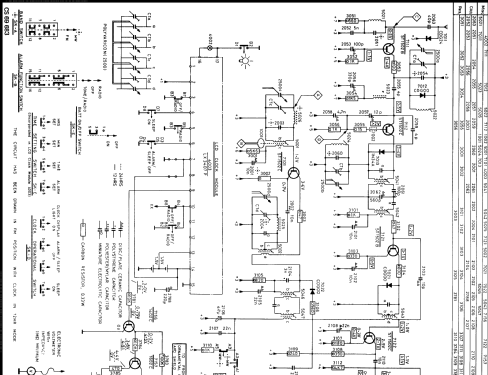

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

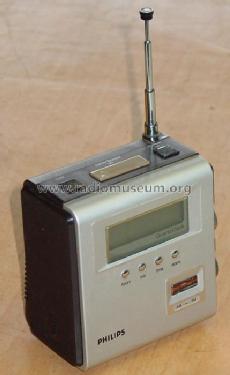

• Model: Reise Radiowecker 90AS306 /00 /01 /15 /40 /45 - Philips Radios - Deutschland

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 85 x 92 x 56 mm / 3.3 x 3.6 x 2.2 inch

• Notes
• /00/15/40: FM: 87,5-104MHz; IF/ZF: 468kHz.
  /01/45: 87,5-108MHz; IF/ZF: 455kHz.
  Für die Uhr werden zusätzlich 2 Knopfzellen benötigt

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
