Reno I 24 T716 /00
Philips Italy; Milano (MI)
- Country
- Italy
- Manufacturer / Brand
- Philips Italy; Milano (MI)
- Year
- 1970 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 353248
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Number of Transistors
- 7
- Semiconductors
- AF239 AF139 AF239 AF126 BF173 AC125 AC132 AA119 AA119 AA119 OA70 BA100 BA100 BA100 OA81 OA81 BY100 BY100
- Main principle
- Superhet with RF-stage; ZF/IF 38900/5500 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Reno I 24 T716 /00 - Philips Italy; Milano MI
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 675 x 511 x 418 mm / 26.6 x 20.1 x 16.5 inch
- Notes
-
Televisore in bianco/nero con VHF e UHF. Cinescopio da 23 pollici con deflessione 110°.
Tutte le valvole compreso il cinescopio sono alimentati in corrente continua.

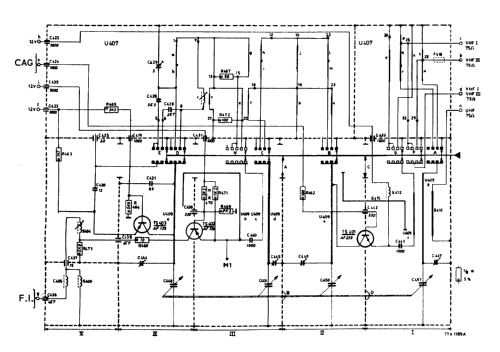

I due gruppi VHF e UHF sono equipaggiati e funzionano con tre soli transistor.
Adatto alla ricezione di emittenti funzionanti con il sistema C.C.I.R.
- Mentioned in
- -- Schematic (Da: “Schemario TV Philips Service”, Edizioni CELI 1972.)
