• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194095

• • Brand: Deutsche Philips-Ges.

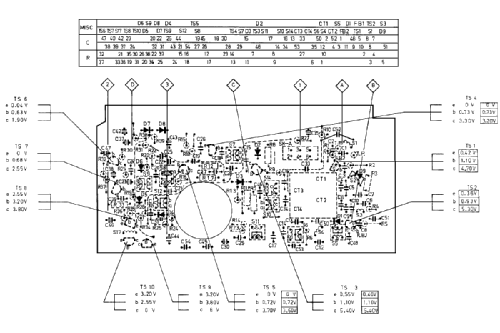

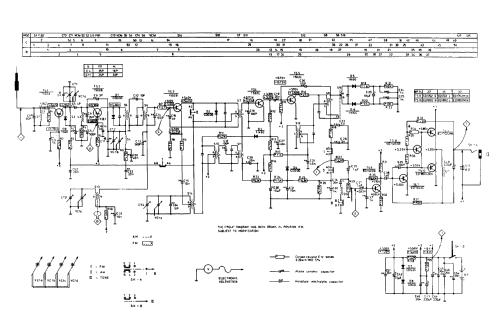

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• ED1502 ED1502 ED1502 ED1502 ED1502 ED1402 ED1402 ED1402 ED1702 ED1802 CDG00 CDG00 1N60 CDG00 1N60 1N60 CDG24 CDG24

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Rex 170 90AL170 /00 - Philips Radios - Deutschland

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 180 x 110 x 50 mm / 7.1 x 4.3 x 2 inch

• Notes

• Ferritantenne für MW, Teleskopantenne für UKW, Anschluss für Kleinhörer, Klangschalter.
  UKW/FM 87.5 - 104 MHz

  Siehe auch das Parallelmodell für den österreichischen Markt Jenny 170 90AL170

  Made in Hong Kong.

• Net weight (2.2 lb = 1 kg)
• 0.650 kg / 1 lb 6.9 oz (1.432 lb)

• Price in first year of sale
• 58.00 DM

• Source of data
• -- Original prospect or advert

• Mentioned in
• Prospekt: Alle Klänge dieser Welt, Ausgabe 1978/79

• Author
• Model page created by Günter Döring. See "Data change" for further contributors.
