RF signal generator PM5326
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1979 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 119934
-
- Brand: Deutsche Philips-Ges.
Funkschau 1.1980

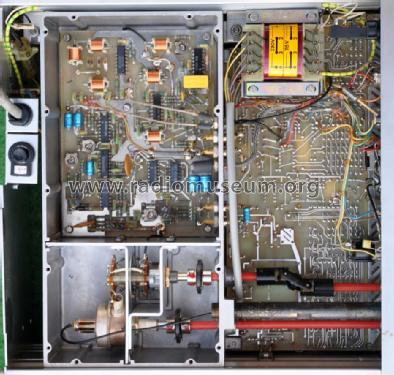

Detailinnenansicht Philips PM5326.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 115; 230 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: RF signal generator PM5326 - Philips Radios - Deutschland
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 310 x 140 x 330 mm / 12.2 x 5.5 x 13 inch
- Notes
- Frequenzbereich: 0,1-125 MHz; AM, FM, unmod.; Sweep: 0,4-0,5, 10-11, 36-41, 75-110 MHz; Zähler: 0-1/0-100 MHz (Std./Variante X).
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Price in first year of sale
- 3,540.00 DM
- Author
- Model page created by a member from D. See "Data change" for further contributors.
