RH591
Philips Canada
- Country
- Canada
- Manufacturer / Brand
- Philips Canada
- Year
- 1971 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 324785

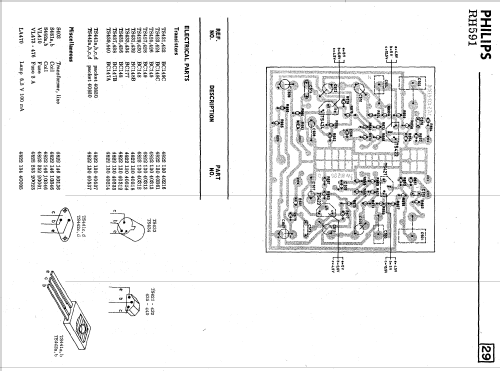

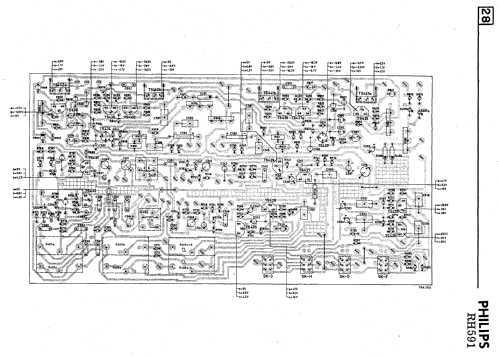

From service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 28
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 40 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RH591 - Philips Canada
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 16.5 x 3.75 x 10 inch / 419 x 95 x 254 mm
- Notes
-
Philips model RH591 is a solid state, stereo amplifier. Walnut cabinet.
Frequency response: 10Hz to 50 kHz +/- 3 dB.
Power output: 2 x 20W into 8 ohms. 2 x 15W into 4 ohms.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1972 Component Stereo #8)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
