Rigoletto BCH462A
Philips - Schweiz
- Country
- Switzerland
- Manufacturer / Brand
- Philips - Schweiz
- Year
- 1946–1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 13366
otra foto
referencia

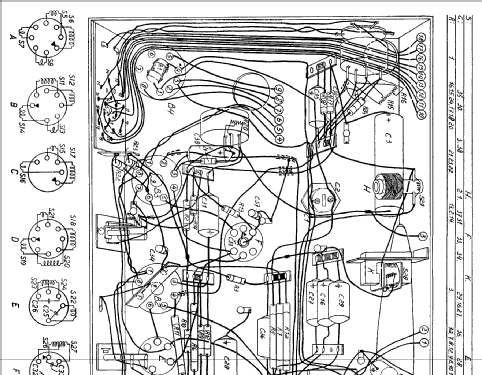

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rigoletto BCH462A - Philips - Schweiz
- Dimensions (WHD)
- 434 x 306 x 226 mm / 17.1 x 12 x 8.9 inch
- Notes
-
Eingangsbandfilter für MW/LW.
Siehe auch HCH462A.Dial lamps: 2x 8045D (6,3V 0,32A)
- Price in first year of sale
- 485.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb

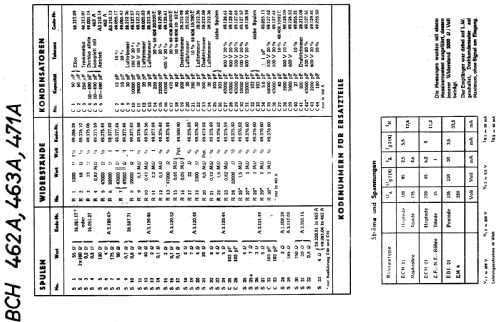

- Circuit diagram reference
- Thali-Schemasammlung und Tungsram-Röhrenbestückung.
