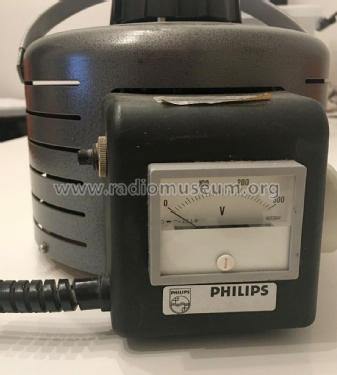

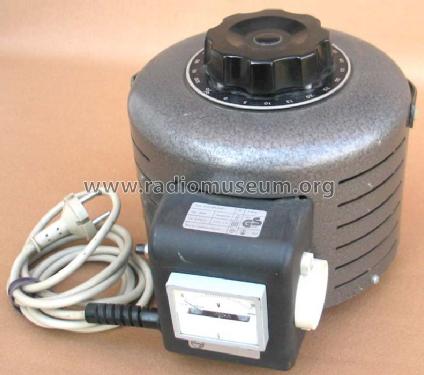

Ringkern-Stelltrenntransformator - Variable Transformer E7.1 2422 529 00007
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1987 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 121317
ebay_265070244804, norticum
ebay_265070244804, norticum
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220-242 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Ringkern-Stelltrenntransformator - Variable Transformer E7.1 2422 529 00007 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 187 x 175 x 0 mm / 7.4 x 6.9 x 0 inch
- Notes
-
Der Philips Regeltrenntrafo E7.1 2422 529 00007 (Variac) hat getrennte Wicklungen. Eingangsspannung 220 Volt + 10%. Ausgangsspannung 0 bis 250 Volt bei max. Belastung und 0 bis 262 Volt im Leerlauf. Netzfrequenzbereich 50-400 Hz.
Ausgangsstrom 3 Ampere bei Dauerlast und 5 Ampere kurzzeitig
Anzeigeinstrument 0 bis 300 Volt.Hersteller: Filec BV, Weverstraat 1A, 5405 BM Uden (NL) für Philips
- Net weight (2.2 lb = 1 kg)
- 10.2 kg / 22 lb 7.5 oz (22.467 lb)
- Source of data
- -- Original prospect or advert
- Mentioned in
- - - Manufacturers Literature (Datasheet)
- Author
- Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
