• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1964/1965

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 25977

• • Brand: Deutsche Philips-Ges.

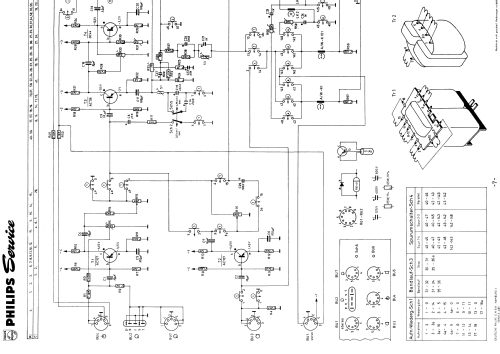

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECL82 EM87

• Number of Transistors
• 5

• Semiconductors
• OC58 OC58 AC126 OC44 OC79 OA70

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RK34 EL3548 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 165 x 350 mm / 15.7 x 6.5 x 13.8 inch

• Notes
• Bandgeschwindigkeiten: 4,75/9,5 cm/s; Spulen-Ø 18 cm.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 500.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965

• Literature/Schematics (1)
• -- Original-techn. papers.
