• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81752

• • Brand: Deutsche Philips-Ges.

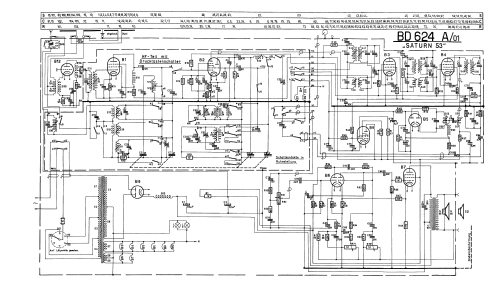

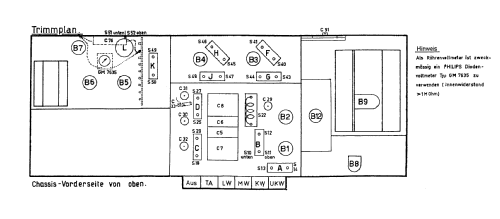

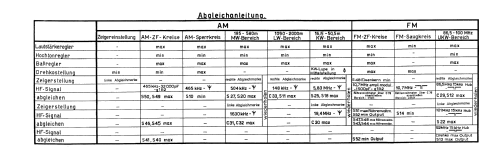

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EC92 EF42 ECH42 EF43 EM34 EAF42 EB41 ECC40 EL41 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

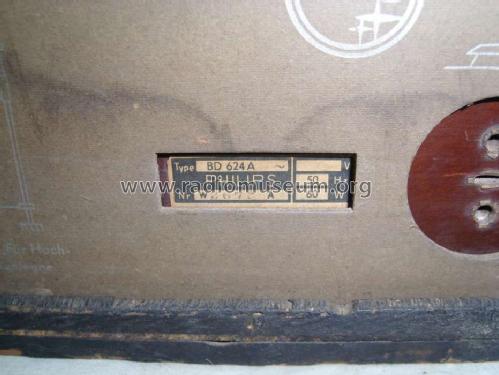

• Model: Saturn 53 BD624A [mit EC92] - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 590 x 380 x 265 mm / 23.2 x 15 x 10.4 inch

• Notes

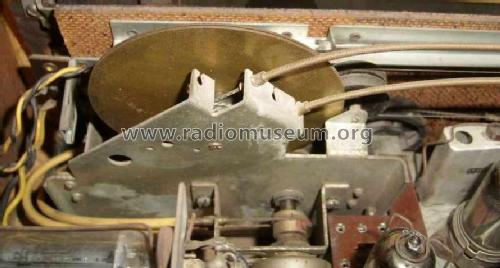

• KW-Lupe mit separater Skala. UKW-Vorstufe EC92 auf Metallwinkel am Chassis befestigt (werksseitige Nachrüstung).

• Net weight (2.2 lb = 1 kg)
• 12.2 kg / 26 lb 14 oz (26.872 lb)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
