• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27961

• • Brand: Deutsche Philips-Ges.

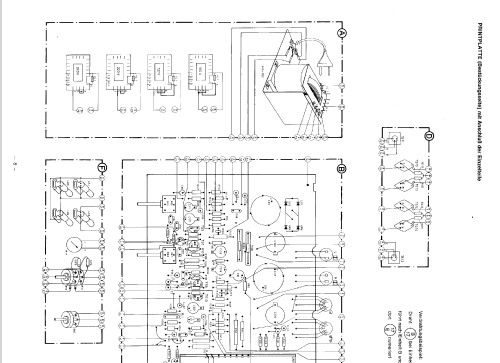

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

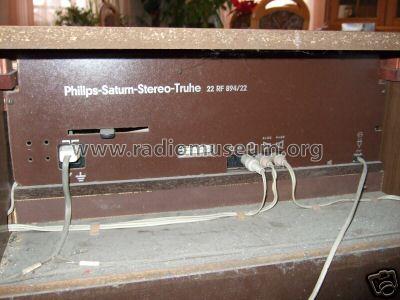

• Model: Saturn Stereo Truhe 22RF894 /22 - Philips Radios - Deutschland

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1400 x 785 x 365 mm / 55.1 x 30.9 x 14.4 inch

• Notes
• Rundfunk-Chassis = 22RH781, Vollstereo, NF-Verstärker mit 2 Endstufen je 10 W (Musik);
  Phono-Chassis = GC036 mit Kristallsystem.

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971
