- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1992
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 288250
Foto Catalogo Philips
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / AA: 1 x 1,5 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: SBC-3070 - Philips; Eindhoven tubes
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 24 x 24 x 257 mm / 0.9 x 0.9 x 10.1 inch
- Notes
-

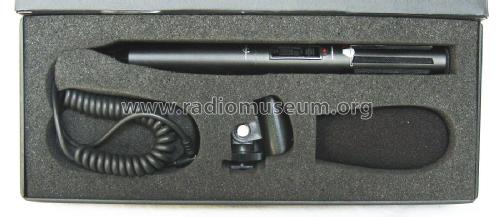

Super-uni-directional (cardioid) electret microphone in aluminium housing with red LED on/off indication, 5 times more sensitive than those used in camcorders, 2 sensitivity positions, sensitivity attenuator.
Frequency range: 60 - 14000Hz,
Impedance: Low position: 2.3kΩ, High position: 520Ω,
Sensitivity: Low position: -45dB, High position: -30dB,
Plug: 3.5mm L-shaped type, mono,
Length of cord: 1.3m, curled,
Accessories: microphone holder for shoe adaptor, vinyl carrying case, foam windscreen.
- Net weight (2.2 lb = 1 kg)
- 0.120 kg / 0 lb 4.2 oz (0.264 lb)
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
