• Country
• Switzerland

• Manufacturer / Brand
• Philips - Schweiz

• Year
• 1939–1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13308

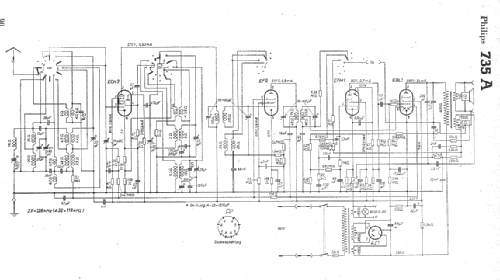

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF9 EBL1 AZ1 EFM1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Serenade 735AM - Philips - Schweiz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 530 x 400 x 230 mm / 20.9 x 15.7 x 9.1 inch

• Notes
• Ch=712A;var.BBr. Unterschied Aoder AM ??

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 400.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.

• Mentioned in
• Les Radio PHILIPS de collection

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
