Serviceoszillator GM2880

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1935

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 123441

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• E409 E409 E409 1823 or 506K

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 103-255 Volt

• Loudspeaker
• - - No sound reproduction output.

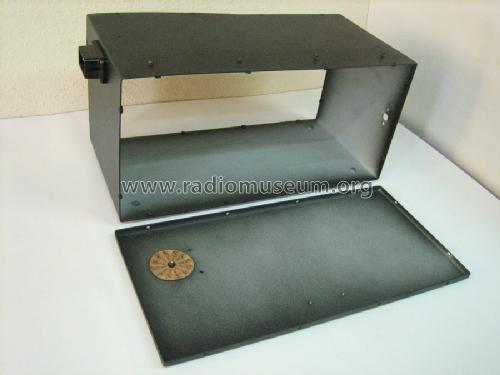

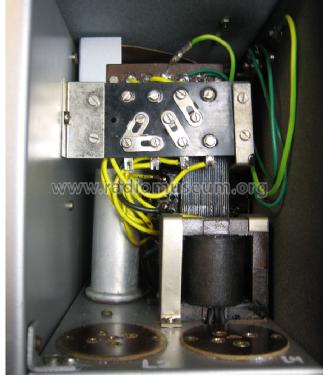

• Material
• Metal case

• from Radiomuseum.org
• Model: Serviceoszillator GM2880 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 405 x 245 x 215 mm / 15.9 x 9.6 x 8.5 inch

• Notes
• Das Gerät enthält:
  - Einen HF-Oszillator mit einstellbarer Frequenz von 100...23080 kHz, in sechs Bereiche unterteilt.
  - Einen HF-Oszillator mit fester Frequenz; folgende Frequenzen waren erhältlich: 166; 333; 545; 857; 1333 kHz.
  - Einen NF-Oszillator 400 Hz, mit dem der veränderliche HF-Oszillator moduliert werden kann.
  - Einen Abschwächer.

• Net weight (2.2 lb = 1 kg)
• 11.4 kg / 25 lb 1.8 oz (25.11 lb)

• Mentioned in
• - - Manufacturers Literature (Philips Datenbuch, 1940)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
