• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1962

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 93202

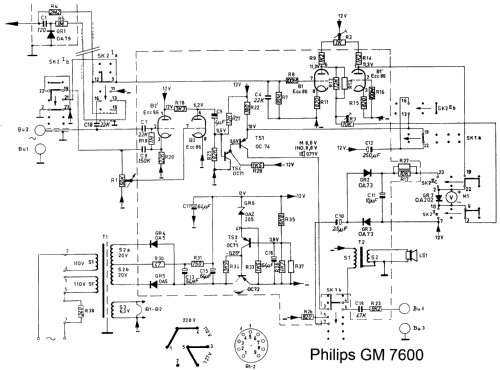

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECC86 ECC86

• Number of Transistors
• 4

• Semiconductors
• OC71 OC71 OC72 OC74 OA5 OA5 OA202 OAZ205 OA73 OA73 OA79

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Signal Tracer GM7600 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 235 x 155 x 120 mm / 9.3 x 6.1 x 4.7 inch

• Notes
• Niedervolt-Röhren für 12 V Anodenspannung.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Mentioned in
• Funkschau 1962, Heft 12, S.323

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Funk-Technik (FT) (13/1962, S. 480 / Messebericht Hannover)

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
