• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1967–1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27033

• • Brand: Deutsche Philips-Ges.

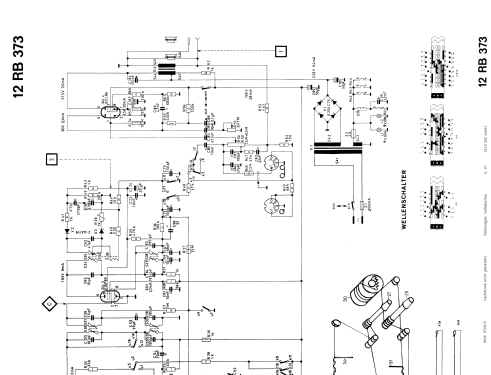

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL86

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

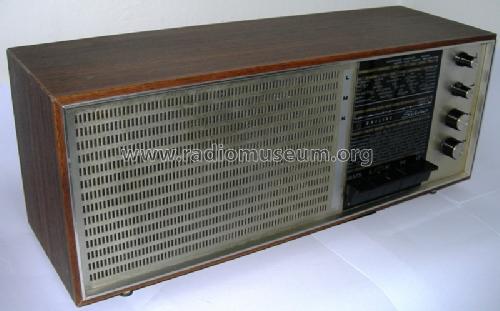

• Model: Sirius 12RB373 - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 500 x 185 x 155 mm / 19.7 x 7.3 x 6.1 inch

• Notes
• Dioden: 2× AA119

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 219.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968

• Mentioned in
• Taxliste Franzis Verlag
