Six Band Portable 695 06AL695 /00

Philips do Brasil S.A.

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 331406

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, more than 2 SW bands plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 110; 220 / 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 0.65 W (1.3 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Six Band Portable 695 06AL695 /00 - Philips do Brasil S.A.
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 285 x 182 x 72 mm / 11.2 x 7.2 x 2.8 inch
  • Notes

  • Wave bands:
    OM = 520 - 1605 kHz
    OC1 = 4.4 MHz
    OC2 = 4.7 - 7.37 MHz
    OC3 = 9.2 - 12.2 MHz
    OC4 = 22.2 MHz
    FM = 87.5 - 108 MHz

    Diodes mentioned once per type.

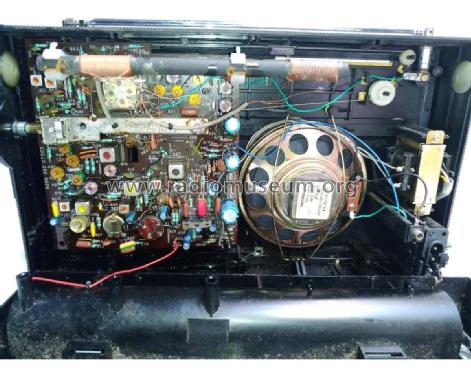

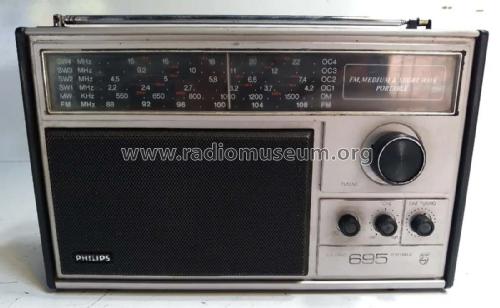

    This model exists with international dials (FM, MW, SW..) and with Portuguese dials (FM, OM, OC..). There are also versions for 220-240 V only.

  • Mentioned in

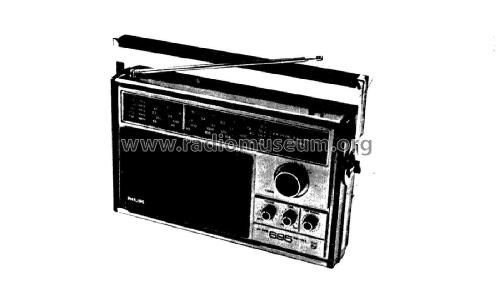

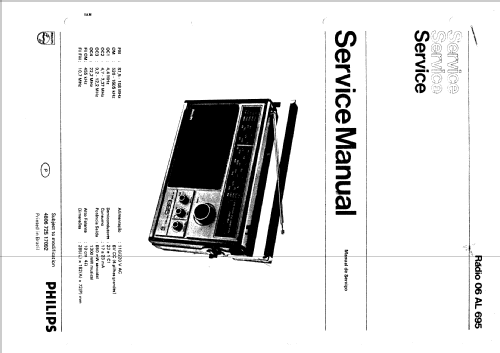

  • -- Original-techn. papers.
