Phonokoffer SK10 AG2356 Ch= AG2056

Philips Radios - Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1961–1963
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 24164
    • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Phonokoffer SK10 AG2356 Ch= AG2056 - Philips Radios - Deutschland
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 349 x 124 x 273 mm / 13.7 x 4.9 x 10.7 inch
  • Notes

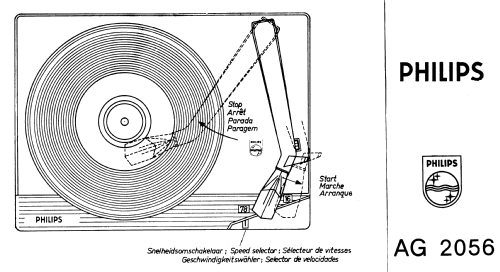

    • Plattenspieler-Chassis SC10 AG2056
    • 4 Geschwindigkeiten 16,6  33,3  45 & 78 UpM
    •  Duplo-Stereo-Kristall-System AG3302 Frequenzbereich 30-15000 Hz.
  • Net weight (2.2 lb = 1 kg)
  • 2.8 kg / 6 lb 2.7 oz (6.167 lb)
  • Price in first year of sale
  • 99.00 DM
  • External source of data
  • Erb
