• Country
• Norway

• Manufacturer / Brand
• Philips Norway (Norsk A/S Philips - A/S Radio Industri); Oslo

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 331625

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors
• AF102 AF185 AF126 AF136 AC125 AF118 AC127 AC132 AD149 ASZ16 BC107 AA119 BY122 BA114 OAZ201 BA102

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 12 W (20 W max.)

• Material
• Wooden case

• from Radiomuseum.org

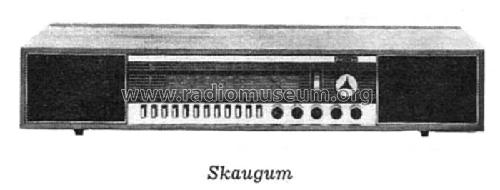

• Model: Skaugum 10RB961 - Philips Norway Norsk A/S

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 780 x 150 x 270 mm / 30.7 x 5.9 x 10.6 inch

• Notes

• Wave bands:
  LW = 147 - 360 kHz
  MW = 510 - 1620 kHz
  SW1 = 1.6 - 4.9 MHz
  SW2 = 5.9 - 18.2 MHz
  FM = 87.5 - 108 MHz

  Cabinet in Teak or Palisander.

  Semiconductors listed once per type. 10 diodes.

  Skaugum is the name for the Norwegian market. This receiver was probably made in Finland.

• Price in first year of sale
• 1,595.00 NKr

• Mentioned in
• Radio TV Bladet, Jan./Feb. 1967
