• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1983 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 240022

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

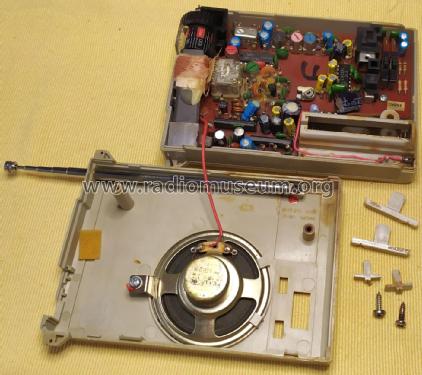

• µPC1018 LA3361 TA7331 TA7331 ED1502 ED1502

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage

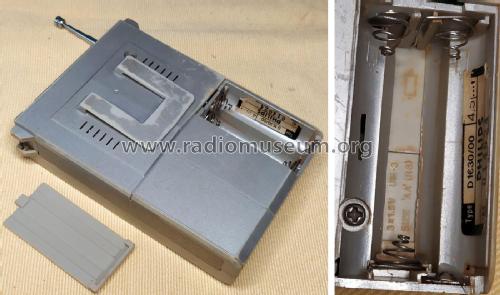

• Dry Batteries / AA: 3 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Skywalker Mark 2 D1630 - Philips; Eindhoven tubes

• Shape

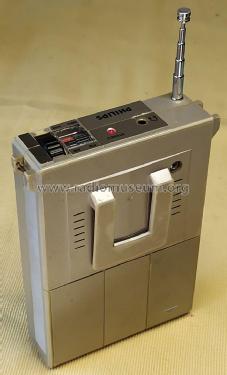

• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 90 x 127 x 35 mm / 3.5 x 5 x 1.4 inch

• Notes

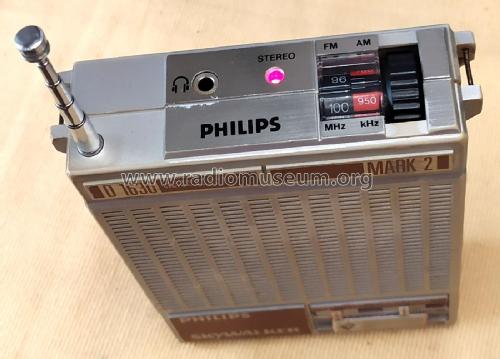

• AM / FM-Stereo portable radio with telescopic antenna.

  See also Magnavox Skywalker D1630 Mark 2.

• Net weight (2.2 lb = 1 kg)
• 0.254 kg / 0 lb 9 oz (0.559 lb)

• Author
• Model page created by José Pinto. See "Data change" for further contributors.
