Sport N3X44T
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1964–1966
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 25934
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 /12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Sport N3X44T - Philips; Eindhoven tubes
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 181 x 54 x 125 mm / 7.1 x 2.1 x 4.9 inch
- Notes
-
Lautsprecherausgang 5Ω.
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Price in first year of sale
- 169.00 DM
- External source of data
- Erb
- Source of data

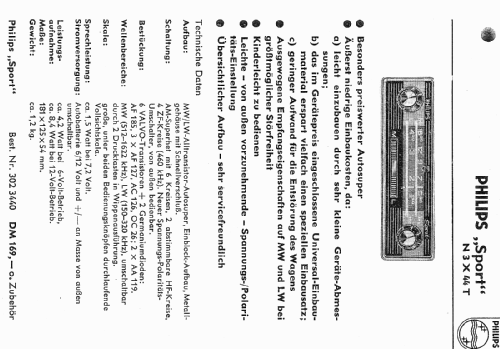

- Handbuch VDRG 1964/1965
- Mentioned in
- Handbuch VDRG 1965/1966
