Sport N4X14T /00 /70
Philips Belgium (Belgien)
- Country
- Belgium
- Manufacturer / Brand
- Philips Belgium (Belgien)
- Year
- 1961–1964
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 230032

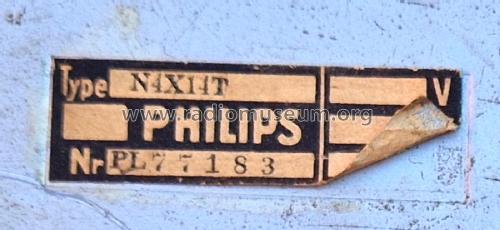

Courtesy of Jon Arne Steinsletten.
Courtesy of Jon Arne Steinsletten.
Courtesy of Jon Arne Steinsletten.
Courtesy of Jon Arne Steinsletten.
Courtesy of Jon Arne Steinsletten.
Courtesy of Jon Arne Steinsletten.
Courtesy of Jon Arne Steinsletten.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Sport N4X14T /00 /70 - Philips Belgium Belgien
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 181 x 54 x 175 mm / 7.1 x 2.1 x 6.9 inch
- Notes
-
Wahlweise Normal- oder Vollsichtskala.
Philips Sport N4X14T kann mit 6 oder 12V betrieben werden. Durch Umstecken des Steckers (6V+; 6V-; 12V+; 12V-) kann außerdem die Polarität minus oder plus an Masse ausgewählt werden.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- External source of data
- Guest Ed Robles, Ferreira do Zezere, Portugal.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
