• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1973–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29114

• • Brand: Deutsche Philips-Ges.

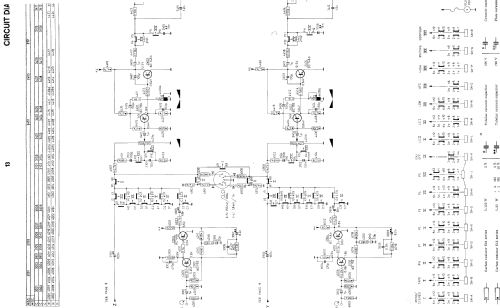

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 48

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 19 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stereo 4 RH837 - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 610 x 280 x 330 mm / 24 x 11 x 13 inch

• Notes
• HiFi-Stereo-Steuergerät mit Plattenspieler. NF-Verstärker mit 2 Endstufen je 20 W (Sinus);
  Phono-Chassis = GC008 für 33 und 45 UpM.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 1,298.00 DM

• External source of data
• Erb

• Source of data
• Katalog RFP 1973
