• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1972 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 151289

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BC149 BC147 BC107 AD161 AD162

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 16 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

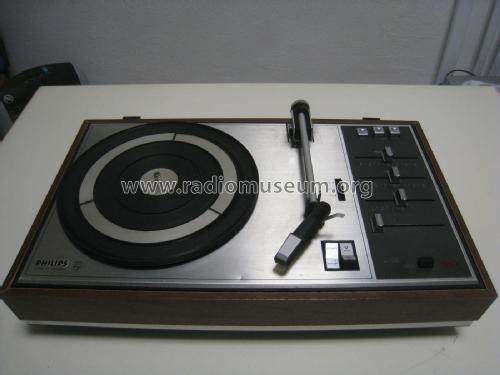

• Model: Stereo 815 22GF815 /04Z - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 450 x 130 x 280 mm / 17.7 x 5.1 x 11 inch

• Notes
• Stereo 815 (22GF815/04Z), Plattenspieler mit NFV, 33/45/78 Upm, Balance-, Höhen-, Bass- und Lautstärkeeinstellung, zwei DIN-Buchsen für EXT Tonquellen, Gehäuserahmen aus furniertem Holz, Boden aus PVC, Deckel Acryl.
  2 Boxen im Lieferumfang (22 EG 0660).

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
