• Year
  • 1980 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 277544

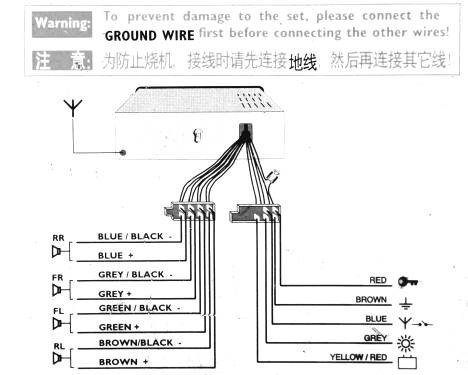

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 450/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 9,5-15,6 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 9 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck 79RC169 - Philips; Eindhoven tubes
  • Shape
  • Chassis only or for «building in»
  • Mentioned in
  • -- Original-techn. papers.
