Stereo Cassette Recorder 70FC450 /00R /00X
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1985 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 325592

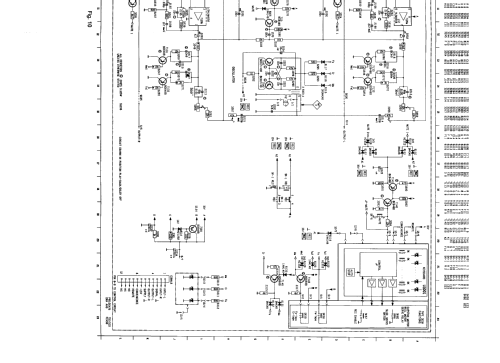

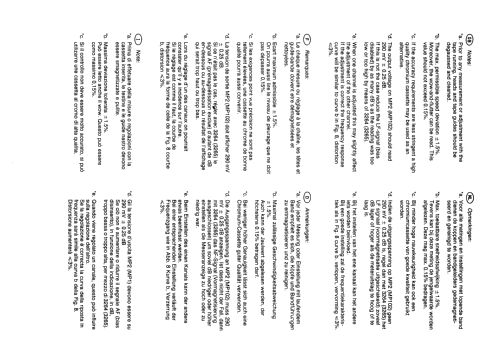

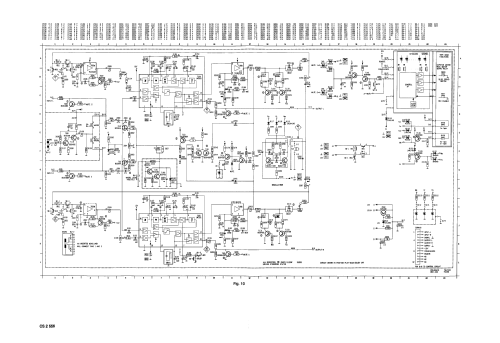

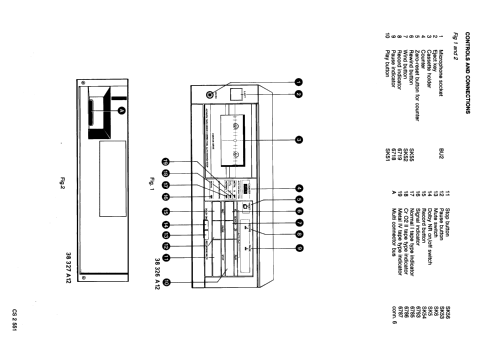

Picture from manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Powered by external power supply or a main unit. / DC: 15 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stereo Cassette Recorder 70FC450 /00R /00X - Philips; Eindhoven tubes
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 320 x 104 x 243 mm / 12.6 x 4.1 x 9.6 inch
- Notes
-
Philips, Stereo Cassette Deck 70FC450
15 VDC supplied by matching amplifier.
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
