• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1970–1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28502

• • Brand: Deutsche Philips-Ges.

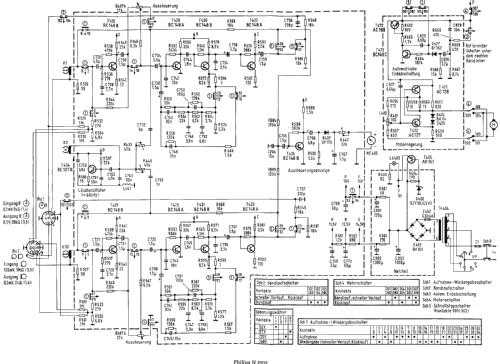

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 245 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo-Cassetten-Recorder N2503/22 - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 220 x 75 x 220 mm / 8.7 x 3 x 8.7 inch

• Notes
• Stereo; Übertragungsbereich 50···10000 Hz.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 185.00 DM

• External source of data
• Erb

• Source of data
• Taxliste Franzis Verlag

• Mentioned in
• Handbuch VDRG 1970/1971 (und 1971/72)
