• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1969/1970

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27827

• • Brand: Deutsche Philips-Ges.

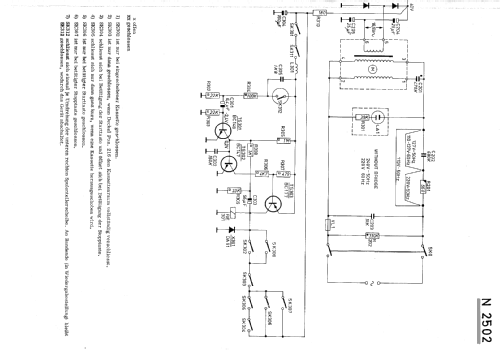

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• BC149 BC148 BC149 BC148 BC148 BC147 BC177 OA91 OA81 OA81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo-Cassetten-Wechsler 2502 - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 381 x 110 x 233 mm / 15 x 4.3 x 9.2 inch

• Notes
• Stereo-Wiedergabegerät für bespielte Compact-Cassetten. Wechselautomatik für 6 Cassetten, Cassetten-Vorratsmagazin und Ablagefach für 6 Cassetten.

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970
