• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1977/1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 125183

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage

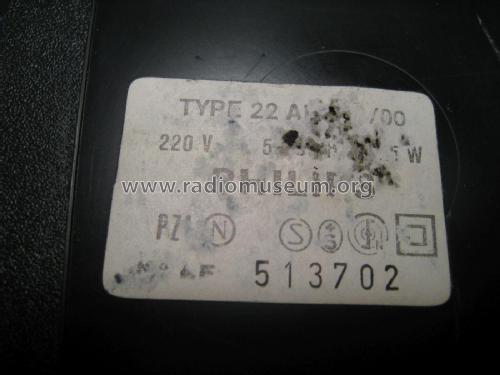

• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stereo-Electrophon AF381 - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 460 x 110 x 260 mm / 18.1 x 4.3 x 10.2 inch

• Notes

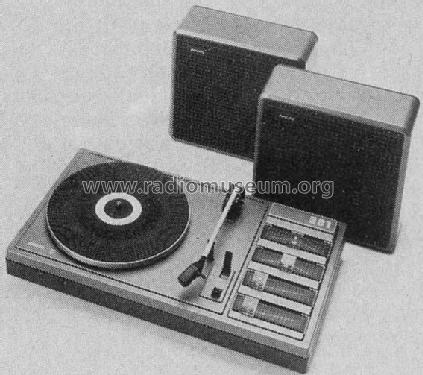

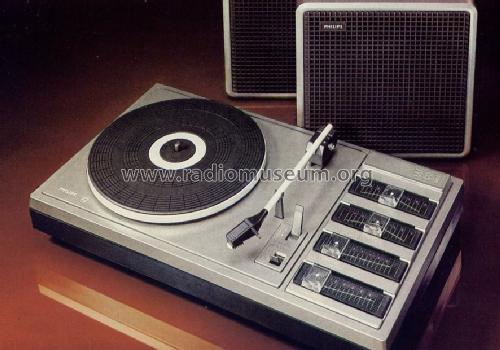

• Stereo-Plattenspieler mit eingebautem Verstärker und zwei separaten Lautsprecherboxen für 33/45 UpM. Keramik-System GP215. Ausgangsleistung: 2× 5 W (Musik).

• Net weight (2.2 lb = 1 kg)
• 5.750 kg / 12 lb 10.6 oz (12.665 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
