Stereo-Electrophon SK95 AG5857
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1965–1967
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 112266
-
- Brand: Deutsche Philips-Ges.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

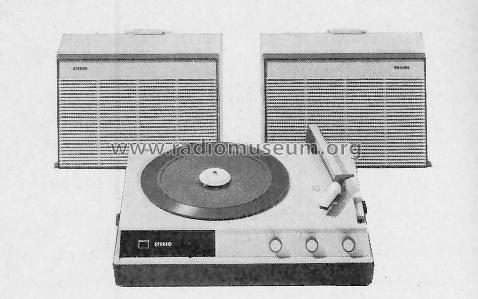

- Model: Stereo-Electrophon SK95 AG5857 - Philips Radios - Deutschland
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 350 x 150 x 270 mm / 13.8 x 5.9 x 10.6 inch
- Notes
- Stereo-Plattenspieler-Verstärkerkoffer; Phono-Chassis = SC10; Stereo-NF-Verstärker mit 2 Endstufen je 1,5 W. Zwei abnehmbare Lautsprecher.
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- Source of data
- Handbuch VDRG 1965/1966
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
