Stereo Radio Cassette Recorder D8273 /01 /10 new 3 bands

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1987 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 324927

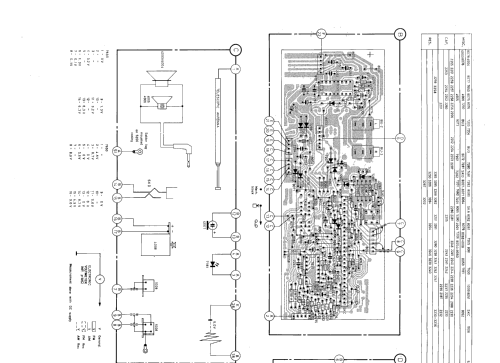

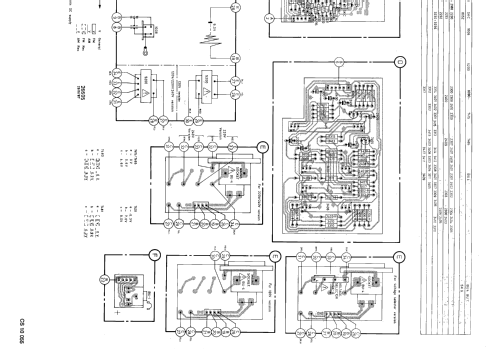

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 or 468/10700 kHz
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 220; 240 / C: 6 x 1.5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 4 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Radio Cassette Recorder D8273 /01 /10 [new 3 bands] - Philips; Eindhoven tubes
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

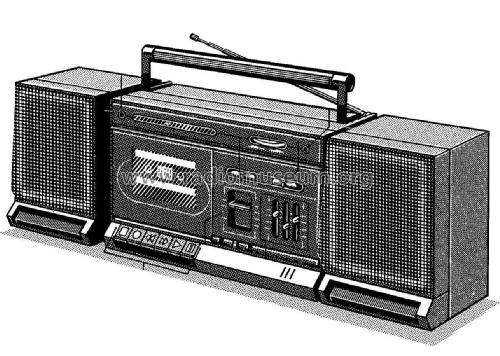

  • Philips Stereo Radio Cassette Recorder D8273

    2 detachables speakers

    Versions:

    • /01: IF= 468 kHz
    • /10: IF= 455 kHz

    Later production with 3 bands ( see also D8273 first production with 4 bands)

    • MW: 526.5 - 1606.5 kHz
    • SW1: 3.95 - 12.05 MHz
    • FM: 87.5 - 108 MHz
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
